Motor Driver (L293DD) Shield for NodeMCU V2 บอร์ดขับมอเตอร์สำหรับ ESP8266 NodeMCU V2

Motor Driver (L293DD) Shield for NodeMCU V2 บอร์ดขับมอเตอร์สำหรับ NodeMCU V2

บอร์ดขับมอเตอร์ L293DD แบบ Shield สำหรับ NodeMCU V2

ข้อมูล Motor Driver (L293DD) Shield for NodeMCU V2 บอร์ดขับมอเตอร์สำหรับ NodeMCU V2

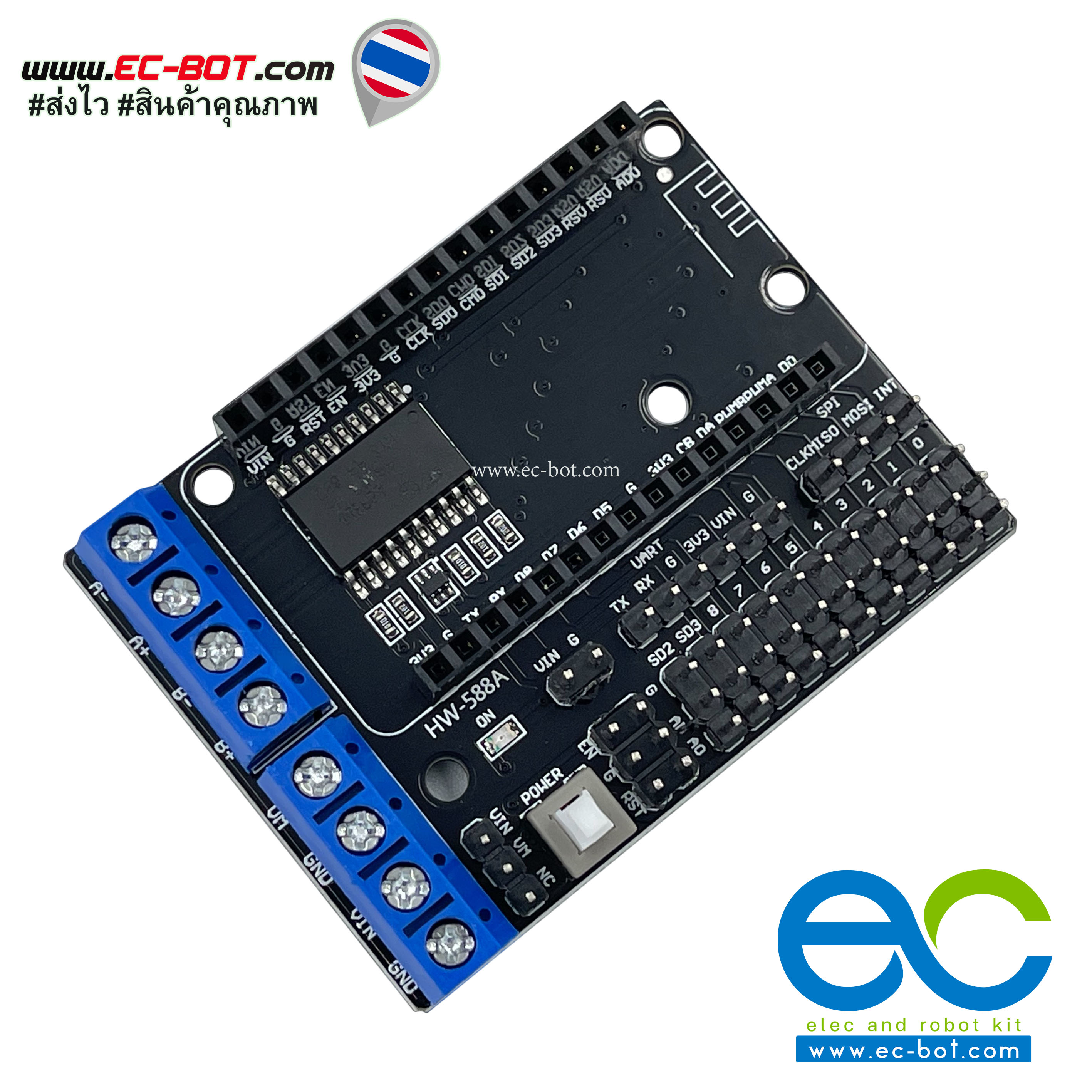

NodeMCU Motor shield for ESP-12E

This is the first motor shield for ESP8266 based on ESP-12E. It is very convenientand cheap to diy a WiFi RC smart car.

Feature :

• Motor power supply (VM): 4.5V ~ 36V, can be powered separately
• Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately
• Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control
• Logic Operating current Iss: ≤60mA (Vi = L), ≤22mA (Vi = H)
• Drive part of the work current Io: ≤1.2A
• Maximum power dissipation: 4W (T = 90 ℃)
• Control signal input level: High: 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
• Working temperature: -25 ℃ ~ + 125 ℃
• Drive Type: Dual high-power H-bridge driver
• ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
• Expand two-way motor-driven, two-way direct drive motor
• Onboard power switch

Motor power, control power separation; In the experiment, by short-circuiting block the merger, the VIN and VM short, while power to the motor and the control board
